Direct Ink Writing

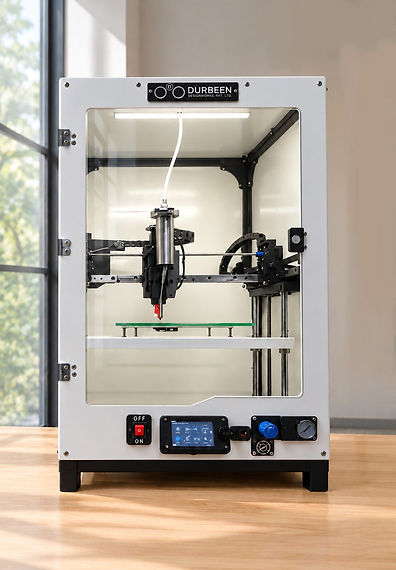

Durbeen DIW ( Direct Ink Writing) 3D Printer

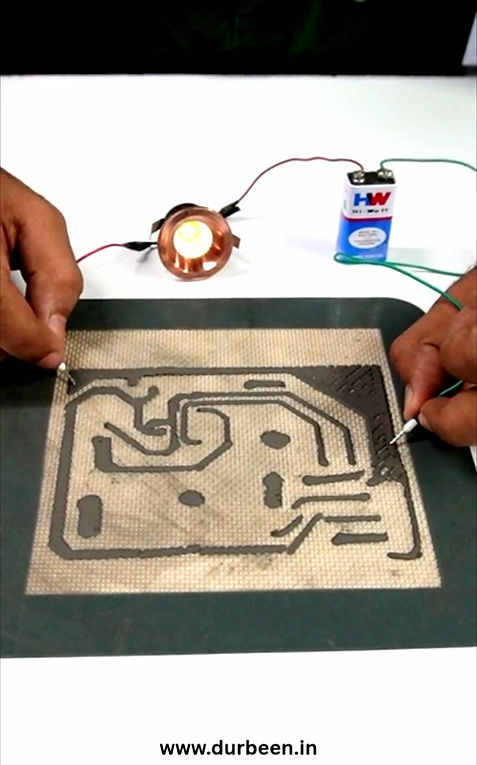

Our technology enables precise deposition of conductive inks to create functional electronic circuits and conductive pathways directly on surfaces.
Degrees of freedom - 3 (X, Y, Z)
Built plate (Bed) - 220×220 mm
Maximum Build height - 200mm
Working chamber - Closed and one side see through glass doors
Position repeatability - ±0.05 mm
Maximum speed - X-axis: 150mm/s, Y-axis: 150mm/s, Z-axis: 10mm/s
Acceleration - 500mm/s2
Max. Print speed - 100mm/s
Power Input - 220V, single phase, 50~60 Hz
Mounting location - Table top
Printing Material - Capable to print any viscous paste/ink of polymers, ceramics, metals, Clay, Alumina, Zirconia etc
Technical specifications
Parameter control -
​​​
Guide Rails -
Movement -
​
​
Control panel -
Run time control of speed, extrusion, pause/resume, power loss recovery.
Chromium plated steel
​
Lead screw for Z axis and Belt Drive in X axis and Y axis
Dual mode Touch Screen
IP-54 protection
Job memory-150 prints or more
Efficient and user-friendly for man-machine communication
Compressor - Integrated with the extruder for precise material delivery
​
Nozzles - 0.4, 0.6, 0.8, 1mm and 2mm (Economical & Easily interchangeable)
​
Material dispensing capability - 20ml, 50ml, 100ml and 1 Litre cartridge
​
Extruder system - Screw arrangement within the extruder for thrusting and thoroughly mixing of material in the extruder
​
Dispensing - Material will be pushed from cartridge to extruder by compressed air.
